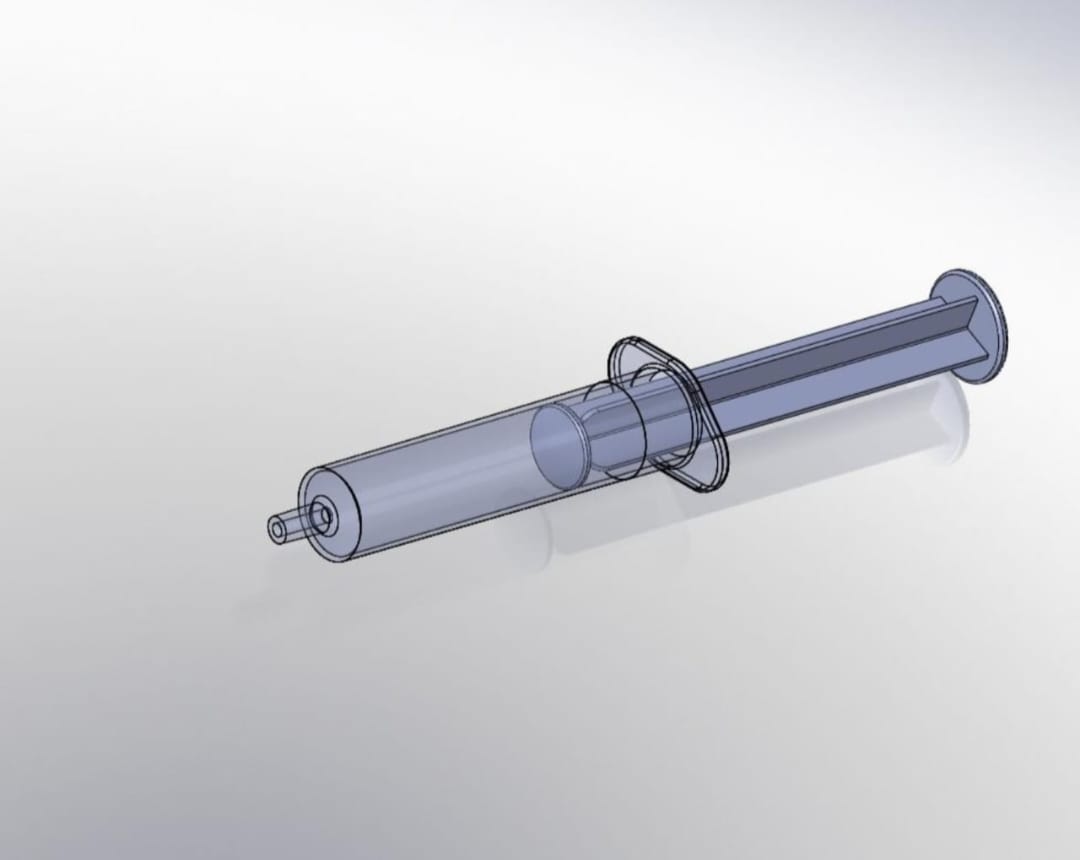

01 · SYRINGESTANDARD INPUT
→02 · VALVEONE-WAY FLOW
→03 · CHAMBERCALIBRATED VOLUME
→04 · DISTAL HEADADJUSTABLE
→05 · ADAPTERREMOVABLE
→06 · ATOMIZEROUTPUT
V1 Architecture
Separate the functions. Keep the pathway continuous.
The main shaft remains stationary while the distal module provides outlet reorientation. The commercial atomizer is supported through a replaceable adapter.
- Standard syringe / Luer interface
- Off-the-shelf one-way check valve
- Visually inspectable chamber
- Mechanical distal orientation
- Replaceable atomizer adapter
