01
Fluid entry
Syringe connects and introduces fluid into the system.
02
One-way flow
The check valve limits reverse flow toward the syringe.
03
Chamber filling
Fluid passes through the visually inspectable experimental chamber.
04
Directional adjustment
The distal head changes outlet orientation while the main shaft remains stationary.
05
Atomized output
The commercial atomizer produces visible spray using a safe surrogate.
Prototype labels
Follow the system in seconds.

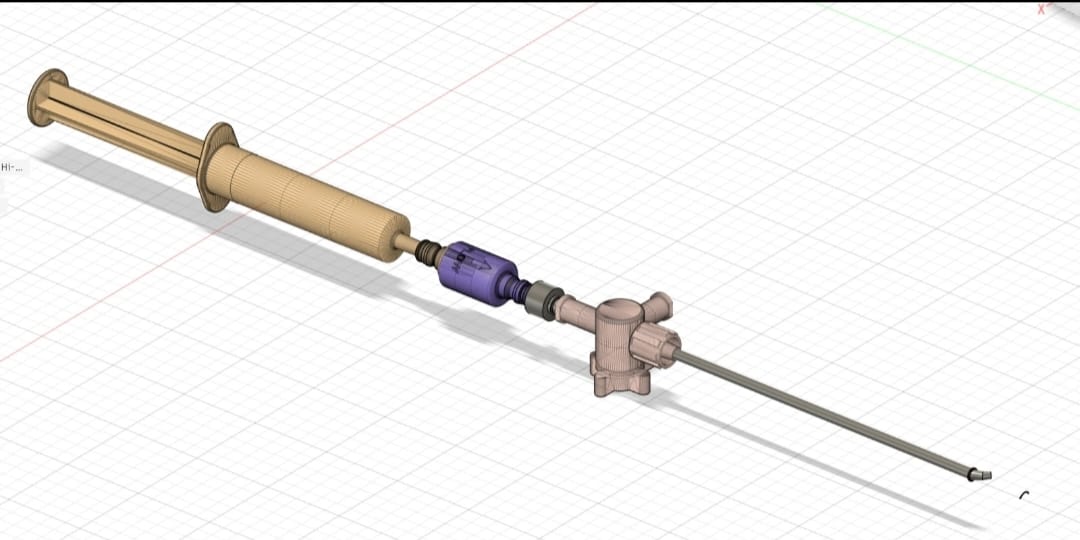

Physical labels should guide the evaluator from syringe interface to one-way flow control, chamber, distal directional module, atomizer adapter and atomizer.
- 1 — Syringe interface
- 2 — One-way flow control
- 3 — Calibrated-volume chamber
- 4 — Instrumentation port · V2
- 5 — Distal directional module
- 6 — Atomizer adapter
- 7 — Atomizer
